12-volt Air Conditioning Kits
(Cooling or Cooling & Heating)
Overview
TURN KEY offers three different options, round vent evaporator (cooling only), square vent evaporator (cooling only), and square vent evaporator (cooling and heating). The square vent evaporator with cooling and heating is an upgrade system. The system uses engine coolant to heat the air vent core. All evaporators (cooling or cooling & heating) outside dimensions (LxHxW) are the same.
Product Summary

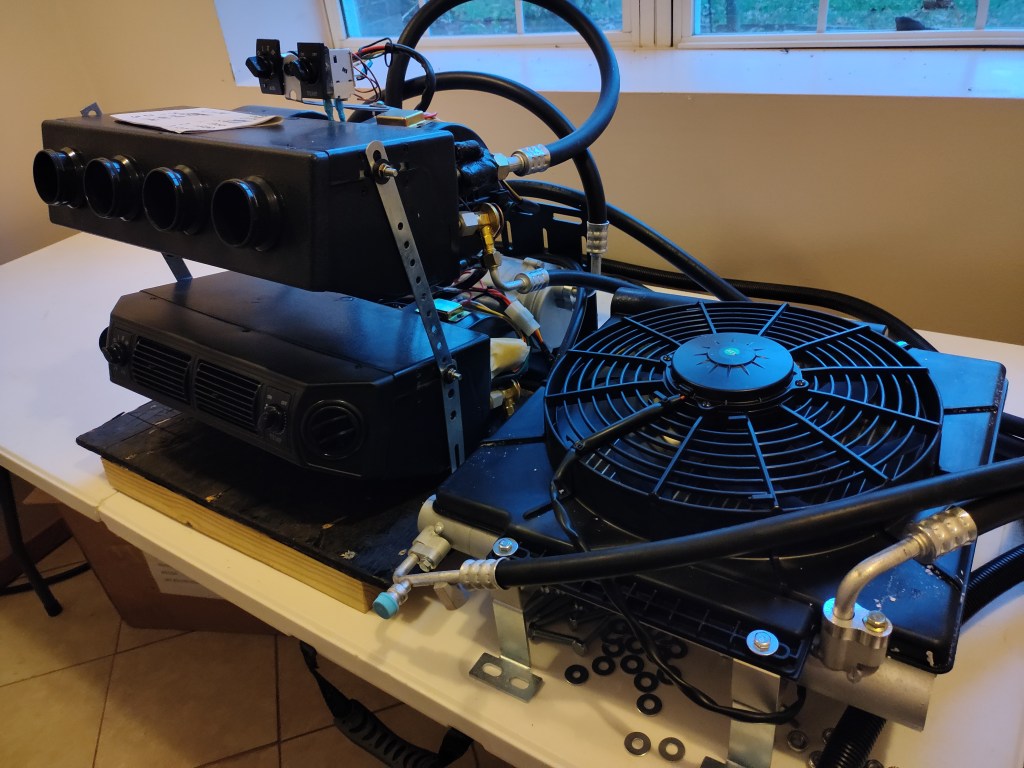

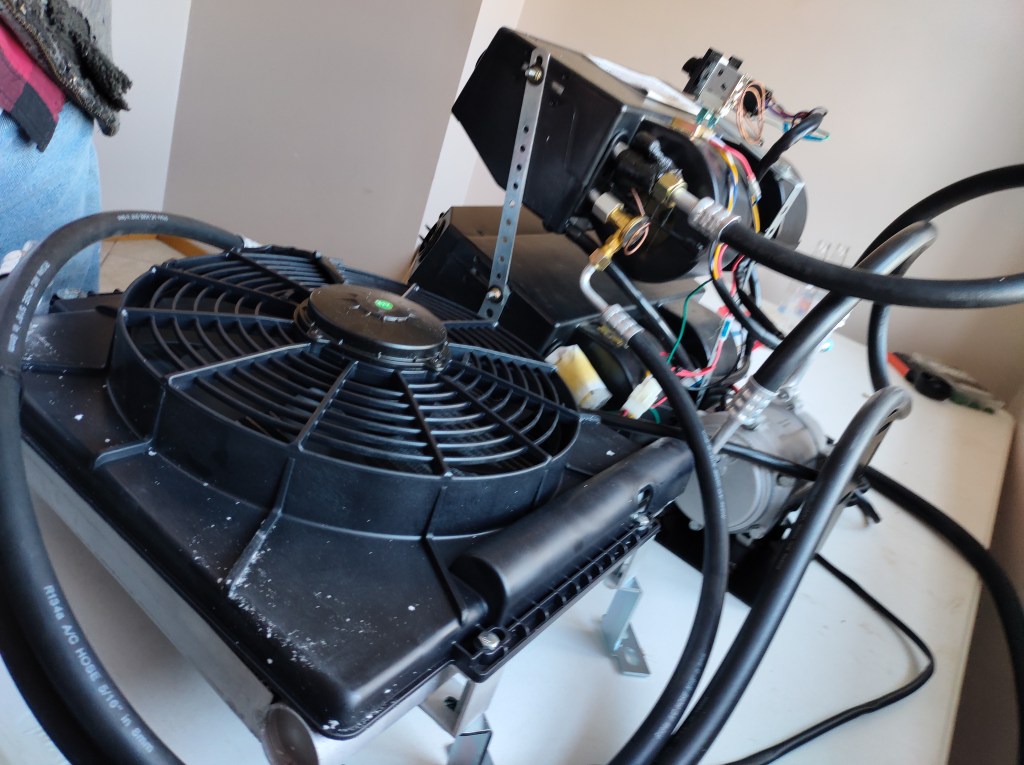

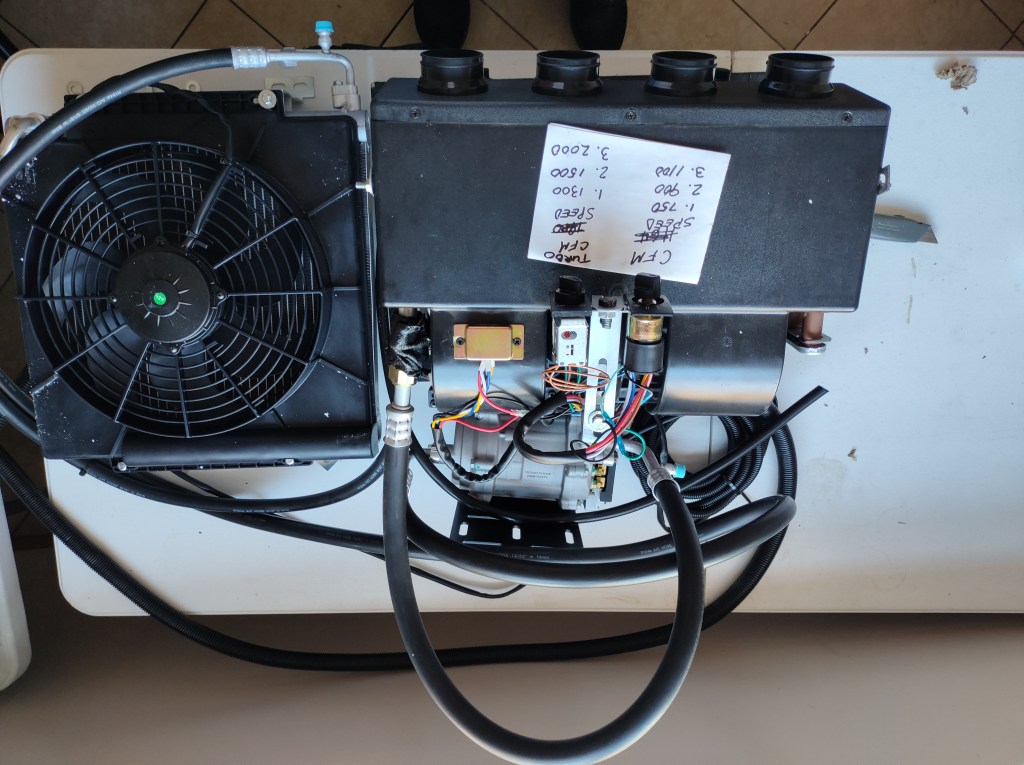

The electric split 12-volt air conditioning kit
comes with all the necessary parts required for a functional AC system in the vehicle. Kit includes the following components:

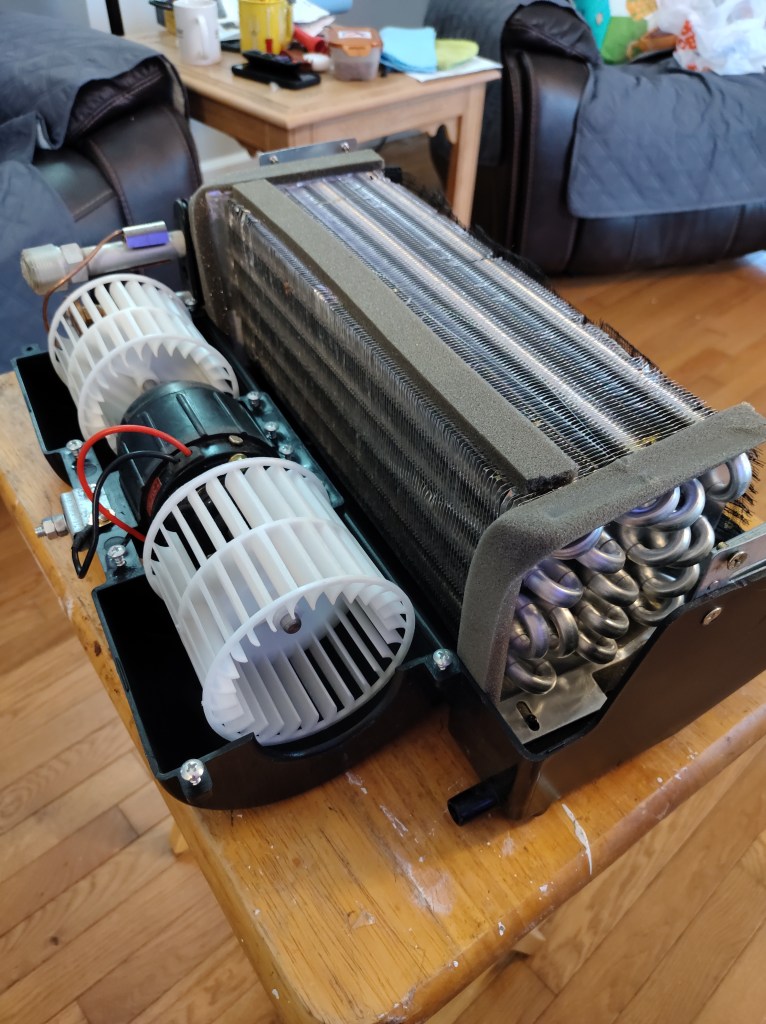

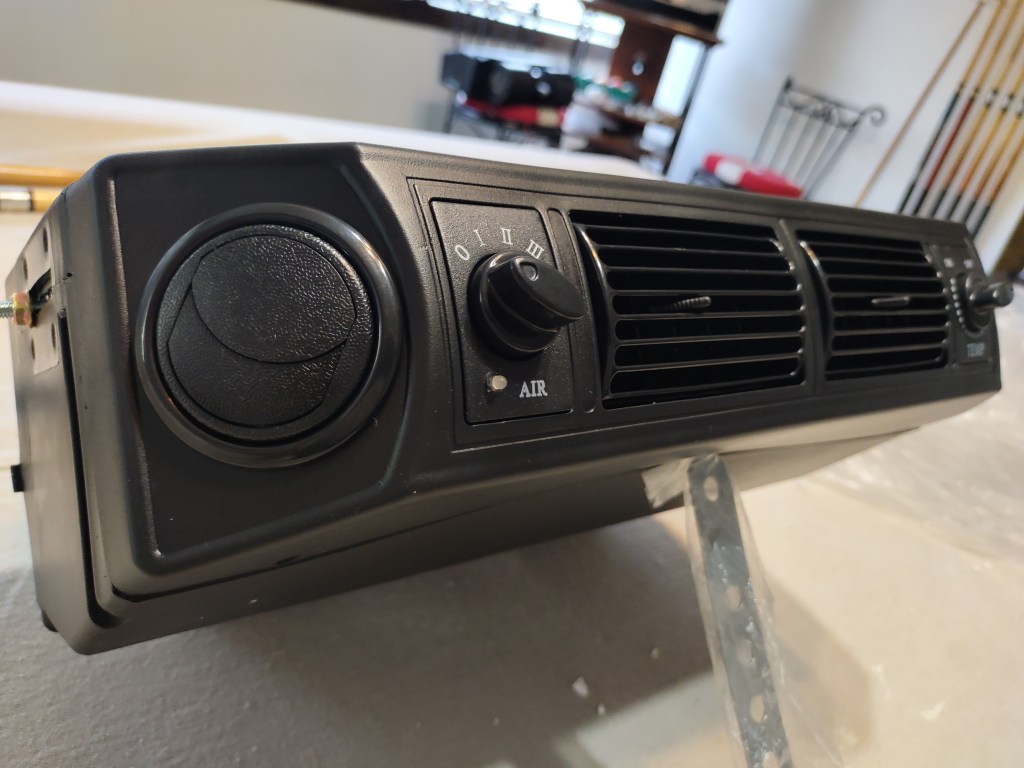

Evaporator shown below, other styles are available

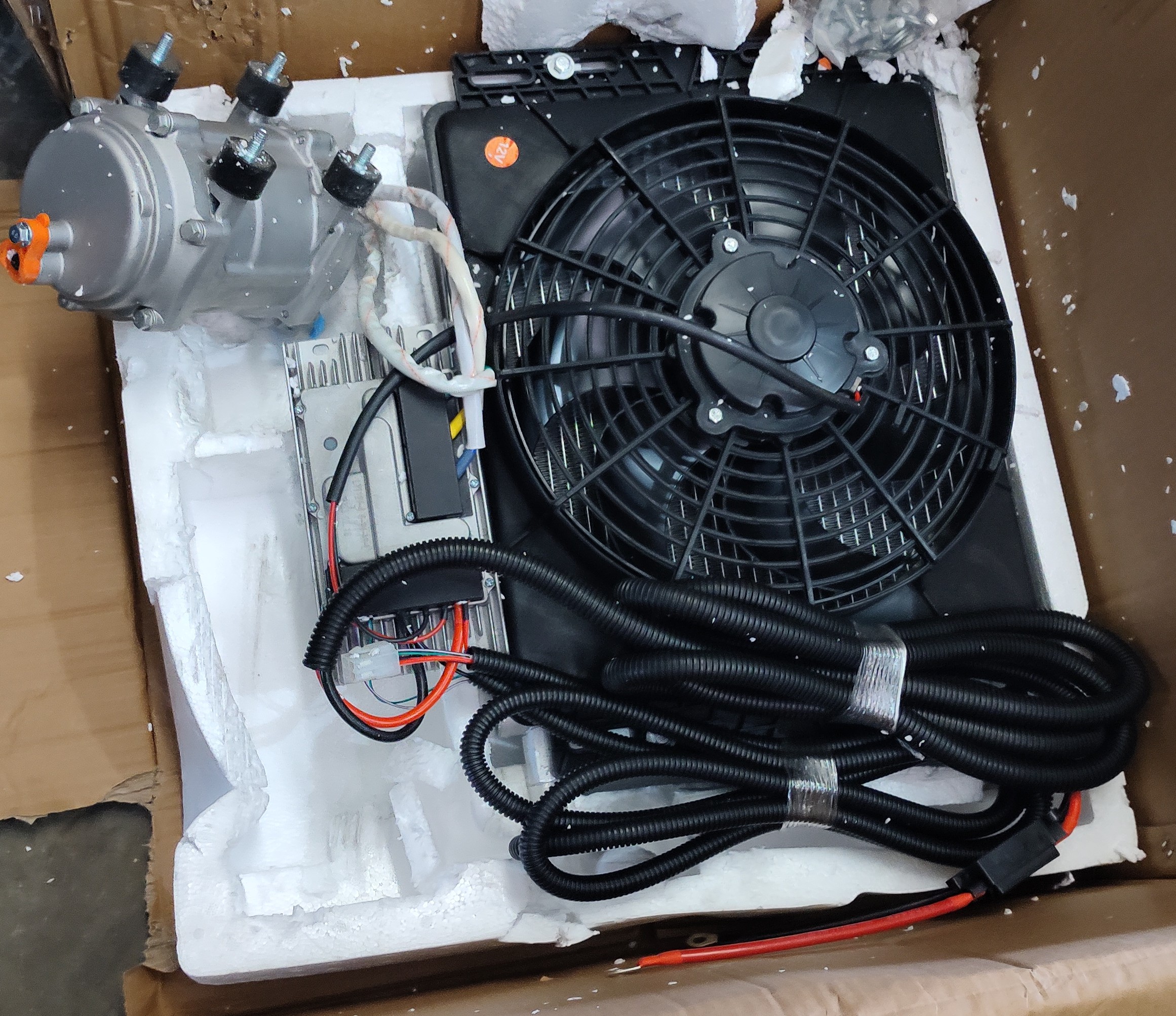

Electric split compressor
1800w12v, rated power 600w, rated cooling voltage (5-14 volts) and uses R134a refrigerant
- Electric Controller Module (ECM)
- Fan/shroud, condenser assembly and wiring

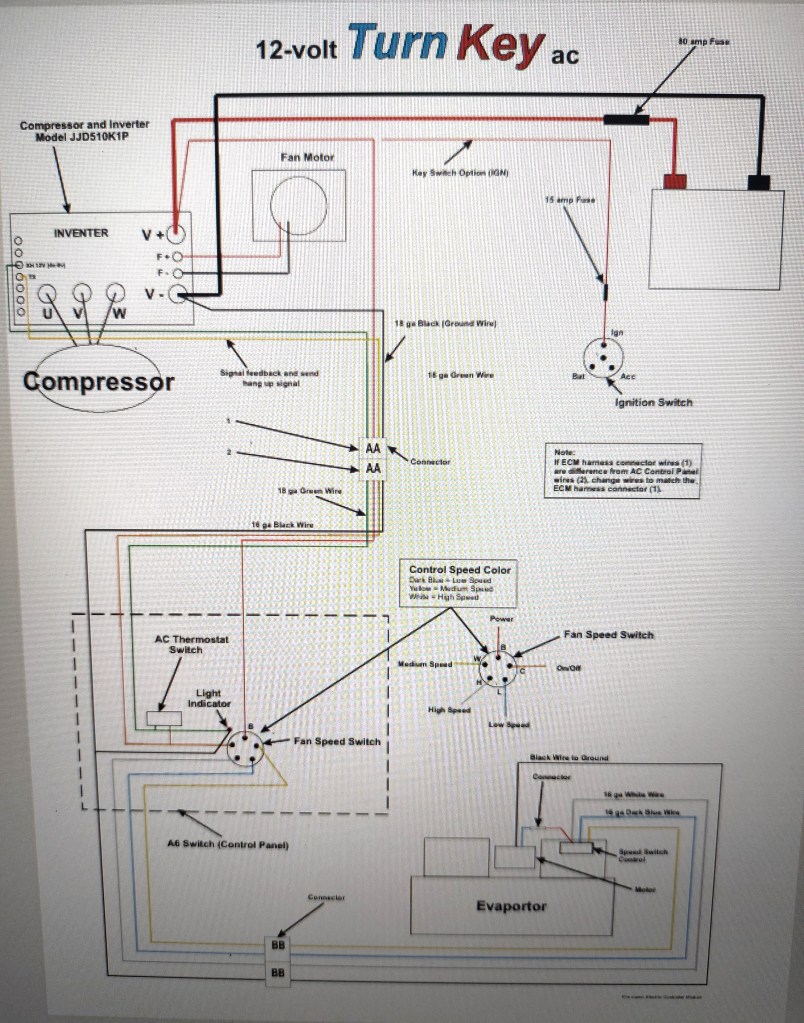

- Electrical wiring harnesses (positive &negative), fuse and connectors
- Condensation and AC hose set with fittings
- Mounting brackets.
| Call for price |
One year manufacture warranty.
Option 1, Round Vent Evaporator (Cooling Only)
Option 2, Square Vent Evaporator (Cooling Only)
Option 3, Square Vent Evaporator (Cooling and Heating)
Technical Data:
AC Power consumption:
Evaporator 3 amp
Electric AC controller & compressor (running on high) 10-15 amp
Electric fan 3 amp
POE68 Synthetic AC oil only (do not add more 1oz. to any new pressurized system).
AC Upgrades
The following items can be installed with any 12-volt air conditioning kit:
✓ Option 3, Evaporator Heat & Cool, 4/8 amp……………………………….
o OEM no……………………………………….……404-100-ABS
o Brand Name…………………………………Turn Key/Norpole
o Cooling Capacity……………………………………13,700 btu
o Max. Air Flow……………………………………………..359 cfm
o Size…………….…….15 3/4 (L) x 13 (W) x 5 5/8 (H) inches
o Weight……………………………………………………….10 lbs.
✓ Option 4, Panel Control Assembly
2.5 inches x 5 inches…………
✓ Option 5, Air Conditioner Dryer…………………………………………………
✓ Option 6, 22 pass 4 way, 8.5 amp, 3-speed, 223L Dual Motor………
o OEM no………………………………………………….223-L100
o rand Name…………………………………..Turn Key/Norpole
o Cooling Capacity……………………………………22,220 btu
o Max. Air Flow……………………………………………..390 cfm
o Shipping Box Size……………………….26 5/8 (L) x 11 ½ (W) x 5 (H) inches
✓ Option 7, Water Heater Control Valve……….…………………………………
Option 3, Square Evaporator (Heat & Cool) Option 4, Panel Control Option 5, Premium AC Dryer
Option 7, Water Heater Control Valve……….…………………………………
Option 3, Square Evaporator (Heat & Cool) Option 4, Panel Control Option 5, Premium AC Dryer
Option 6, 223L-100 Dual Motor Square Vent Evaporator
Option 7, Heater Control Valve
